This is a project I have been working on for quite some time now (about 2 years to be exact). And I have FINALLY.... Well... ALMOST have it completed, however I am finally ready to post the source and schematic for it (beta still btw). Hope you like!
I used the Arduino IDE to compile this code, and just pushed it via avrdude through icsp, so just to give a heads up I don't think this will work in avrstudio (well without a few adjustments anyways).
Source Code:
****BE WARNED! THIS IS BETA STILL! I CAN'T GUARANTEE IT IS STABLE AND THAT IT ALL WORKS!!!****
/*
//Global variables and reassignment of pins
Will show more as I get it up here.
Also there will be a youtube post with it in action soon.
 |
| Exit sign poining to the bloggest with the bestest erm... best something :P |
 |
| Another pic of the exit sign in action |
 |
| Reflective material behind exit sign with leds (i.e. yep you guessed it, aluminum foil) |
 |
| Full underface of exitsign |
 |
| The back |
 |

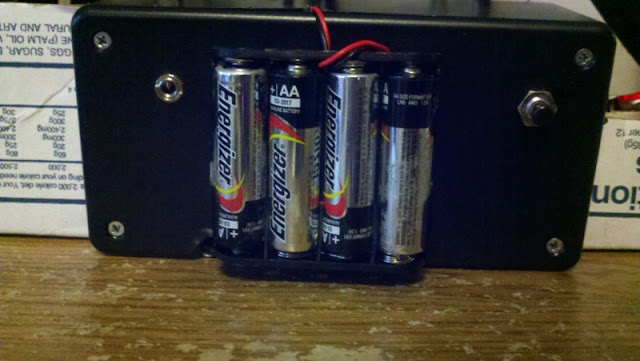

| I wanted the batteries to be housed inside it but wanted easy access to them without disturbing the inner parts. Also of note, on the left we have the Microphone jack (because the whole original purpose was for it to light to music which it does :) and on the right we have the mode selection non-functioning switch (do NOT buy these crap radio shack buttons! I found out the hard way :/) |
 |
| Ah yes, the inner rats nest and pcbs that are the brains of the operation. |
 |
| This is pretty much just your standard arduino-esque board with an Atmega328p, and a really rough looking ICSP port minus the VCC pin. |
 |
| Here is where the magic happens ;) This is (though you cant see it from the cap on top) is an lm368 audio amplifier/generic opamp I got at radioshack that converts the analog audio from the microphone jack to power waves to be read by the analog 01 port from the atmega to then convert to digital to process and display the sound on the board. |
 |
| Back where the mic jack and that crappy switch is. |
 |
| Sensitivity pot for the amplifier. Works like a charm too. |
Here's pretty much the closest thing to a good schematic I have atm:
I used the Arduino IDE to compile this code, and just pushed it via avrdude through icsp, so just to give a heads up I don't think this will work in avrstudio (well without a few adjustments anyways).
****BE WARNED! THIS IS BETA STILL! I CAN'T GUARANTEE IT IS STABLE AND THAT IT ALL WORKS!!!****
/*
Honkey Hacker presents
The Audio Light Organ Exit Sign
selectable modes of operation
Utilizing PWM and analog output techniques
Free as in libre nachos!
*/
//Global variables and reassignment of pins
// < E X I T >
int l = 6;// define pin 6 as exit sign <
int e = 3;// define pin 3 as exit sign E
int x = 5;// define pin 5 as exit sign X
int i = 11;// define pin 11 as exit sign I
int t = 10;// define pin 10 as exit sign T
int r = 9;// define pin 9 as exit sign >
int buttnPin = 2;
int buttonVal =0;
int modeSwitch = 1;
int buttonPress = 1;
const int analogPin = 0;
//Define Modes of operation
void Startup();
void StandardMode();
void MusicMode1();
void MusicMode2();
void MusicMode3();
//Define Effects
void ClearAll();
void Light(int light, int power);
void LightAll(); //1
void DimAll();//2
void ChaseRight();//4
void ChaseLeft();//5
void Mosaic();//6
void SoftChaseRight();//7
void SoftChaseLeft();//8
void Flicker();//9
void MultiFlicker();//10
void SimpleFlicker();//11
void InsideOut();//12
void OutsideIn();//13
void setup() {
pinMode(2, INPUT);
}
void loop() {
Startup();
}
void Startup(){
InsideOut();OutsideIn();ClearAll(); Mosaic(); Mosaic();StandardMode();
}
void StandardMode(){
do{
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
if(buttonPress > 1){modeSwitch++; buttonPress = 0;}
switch (modeSwitch) {
case 1: //music mode 1
delay(100);
MusicMode1();
break;
case 2: //music mode 2
delay(100);
MusicMode2();
break;
case 3: //music mode 3
delay(100);
MusicMode3();
break;
case 4: //mosaic
Mosaic();
break;
case 5: //Chase right
ChaseRight();
break;
case 6: //Chase left
ChaseLeft();
break;
case 7: //Chase right then left
ChaseRight(); ChaseLeft();
break;
case 8: //soft chase right
SoftChaseRight();
break;
case 9: //soft chase left
SoftChaseLeft();
break;
case 10: //soft chase right then left
SoftChaseRight();
SoftChaseLeft();
break;
case 11: //flicker
Flicker();
break;
case 12: //multiflicker
MultiFlicker();
break;
case 13: //simpleflicker
SimpleFlicker();
break;
case 14: //inside out
InsideOut();
break;
case 15: //outside in
OutsideIn();
break;
case 16: //inside out then back in
InsideOut();
OutsideIn();
break;
case 17: //test light <
ClearAll();
Light(l, 255);
break;
case 18: //test light E
ClearAll();
Light(e, 255);
break;
case 19: //test light X
ClearAll();
Light(x, 255);
break;
case 20: //test light I
ClearAll();
Light(i, 255);
break;
case 21: //test light T
ClearAll();
Light(t, 255);
break;
case 22: //test light >
ClearAll();
Light(r, 255);
break;
case 24: //Lightall then DimAll
LightAll(); delay(1000);DimAll();delay(1000);
break;
case 25: //demo mode
Light(x,255);delay(200);InsideOut();OutsideIn();SimpleFlicker(); ClearAll(); Mosaic(); Mosaic(); MultiFlicker(); ChaseRight(); ChaseLeft(); Flicker(); SoftChaseRight(); SoftChaseLeft(); LightAll(); delay(1000);DimAll();
break;
case 26: //reset button mode value
modeSwitch = 1;
break;
default: //Error code 3
ClearAll();
Light(e,255);
}
}while(1);
}
void Light(int light, int power)
{
ClearAll();
analogWrite(light, power);
}
void MusicMode1(){ //this will be used to test input with serial out. please discard the slow ass serial out once finished :)
int mn = 1024; // mn only decreases
int mx = 0; // mx only increases
// Perform 10000 reads. Update mn and mx for each one.
for (int i = 0; i < 10; ++i) {
int val = analogRead(analogPin);
mn = min(mn, val);
mx = max(mx, val);
}
// Send min, max and delta over Serial
/* Serial.print("m=");
Serial.print(mn);
Serial.print(" M=");
Serial.print(mx);
Serial.print(" D=");
Serial.print(mx-mn);
Serial.println(); */
if (mx-mn <= 250){analogWrite(l,0);analogWrite(e,0); analogWrite(x,0);analogWrite(i,0);analogWrite(t,0);analogWrite(r,0);}
if (mx-mn >= 251 && mx-mn <= 400){analogWrite(l,255);analogWrite(e,0); analogWrite(x,0);analogWrite(i,0);analogWrite(t,0);analogWrite(r,0);}
if (mx-mn >= 401 && mx-mn <= 500){analogWrite(l,255);analogWrite(e,255); analogWrite(x,0);analogWrite(i,0);analogWrite(t,0);analogWrite(r,0);}
if (mx-mn >= 551 && mx-mn <=650){analogWrite(l,255);analogWrite(e,255); analogWrite(x,255);analogWrite(i,0);analogWrite(t,0);analogWrite(r,0);}
if (mx-mn >= 651 && mx-mn <=850){analogWrite(l,255);analogWrite(e,255); analogWrite(x,255);analogWrite(i,255);analogWrite(t,0);analogWrite(r,0);}
if (mx-mn >= 851 && mx-mn <=900 ){analogWrite(l,255);analogWrite(e,255); analogWrite(x,255);analogWrite(i,255);analogWrite(t,255);analogWrite(r,0);}
if (mx-mn >= 701){analogWrite(l,255);analogWrite(e,255); analogWrite(x,255);analogWrite(i,255);analogWrite(t,255);analogWrite(r,255);}
}
void MusicMode2(){ //here for filler until finished testing.
int mn = 1024; // mn only decreases
int mx = 0; // mx only increases
int val = 0;
// Perform 10000 reads. Update mn and mx for each one.
for (int i = 0; i < 500; ++i) {
val = analogRead(analogPin);
mn = min(mn, val);
mx = max(mx, val);
}
// Send min, max and delta over Serial
analogWrite(l,mx-mn);analogWrite(e,mx-mn); analogWrite(x,mx-mn);analogWrite(i,mx-mn);analogWrite(t,mx-mn);analogWrite(r,mx-mn);
}
void MusicMode3(){//here for filler until finished testing.
int mn = 1024; // mn only decreases
int mx = 0; // mx only increases
// Perform 10000 reads. Update mn and mx for each one.
for (int i = 0; i < 500; ++i) {
int val = analogRead(analogPin);
mn = min(mn, val);
mx = max(mx, val);
}
if (mx-mn <= 200){analogWrite(l,0);analogWrite(e,0); analogWrite(x,0);analogWrite(i,0);analogWrite(t,0);analogWrite(r,0);}
if (mx-mn >= 201 && mx-mn <= 350){analogWrite(l,0);analogWrite(e,0); analogWrite(x,255);analogWrite(i,255);analogWrite(t,0);analogWrite(r,0);}
if (mx-mn >= 351 && mx-mn <= 550){analogWrite(l,0);analogWrite(e,255); analogWrite(x,255);analogWrite(i,255);analogWrite(t,255);analogWrite(r,0);}
if (mx-mn > 551){analogWrite(l,255);analogWrite(e,255); analogWrite(x,255);analogWrite(i,255);analogWrite(t,255);analogWrite(r,255);}
}
void ClearAll(){
analogWrite (l,0);
analogWrite (e,0);
analogWrite (x,0);
analogWrite (i,0);
analogWrite (t,0);
analogWrite (r,0);
}
void Mosaic()
{
ClearAll();
int breaker = 0;
int timeLight = 0;
int timeLight1 = 0;
int timeLight2 = 255;
do{
if(timeLight < 255){
analogWrite(l, timeLight1);
analogWrite(x, timeLight1);
analogWrite(t, timeLight1++);
analogWrite(e, timeLight2);
analogWrite(i, timeLight2);
analogWrite(r, timeLight2--);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
if (timeLight > 255){
analogWrite(l, timeLight1);
analogWrite(x, timeLight1);
analogWrite(t, timeLight1--);
analogWrite(e, timeLight2);
analogWrite(i, timeLight2);
analogWrite(r, timeLight2++);
}
timeLight++;
delay(5);
if (timeLight > 510){breaker=1;}
}
while(breaker < 1);
}
void ChaseRight(){
ClearAll();
analogWrite(l,255); delay(500);
analogWrite(l,0);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
analogWrite(e,255); delay(500);
analogWrite(e,0);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
analogWrite(x,255); delay(500);
analogWrite(x,0);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
analogWrite(i,255); delay(500);
analogWrite(i,0);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
analogWrite(t,255); delay(500);
analogWrite(t,0);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
analogWrite(r,255); delay(500);
analogWrite(r,0);
}
void ChaseLeft(){
ClearAll();
analogWrite(r,255); delay(500);
analogWrite(r,0);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
analogWrite(t,255); delay(500);
analogWrite(t,0);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
analogWrite(i,255); delay(500);
analogWrite(i,0);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
analogWrite(x,255); delay(500);
analogWrite(x,0);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
analogWrite(e,255); delay(500);
analogWrite(e,0);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
analogWrite(l,255); delay(500);
analogWrite(l,0);
}
void SoftChaseRight(){
ClearAll();
for(int bright=0; bright < 255; bright++)
{
analogWrite(l, bright); delay(2);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
for(int bright=0; bright < 255; bright++)
{
analogWrite(e, bright); delay(2);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
for(int bright=0; bright < 255; bright++)
{
analogWrite(x, bright); delay(2);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
for(int bright=0; bright < 255; bright++)
{
analogWrite(i, bright); delay(2);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
for(int bright=0; bright < 255; bright++)
{
analogWrite(t, bright); delay(2);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
for(int bright=0; bright < 255; bright++)
{
analogWrite(r, bright); delay(2);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
for(int bright=255; bright > 0; bright--)
{
analogWrite(l, bright); delay(2);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
for(int bright=255; bright > 0; bright--)
{
analogWrite(e, bright); delay(2);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
for(int bright=255; bright > 0; bright--)
{
analogWrite(x, bright); delay(2);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
for(int bright=255; bright > 0; bright--)
{
analogWrite(i, bright); delay(2);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
for(int bright=255; bright > 0; bright--)
{
analogWrite(t, bright); delay(2);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
for(int bright=255; bright > 0; bright--)
{
analogWrite(r, bright); delay(2);
}
}
void SoftChaseLeft(){
ClearAll();
for(int bright=0; bright < 255; bright++)
{
analogWrite(r, bright); delay(2);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
for(int bright=0; bright < 255; bright++)
{
analogWrite(t, bright); delay(2);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
for(int bright=0; bright < 255; bright++)
{
analogWrite(i, bright); delay(2);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
for(int bright=0; bright < 255; bright++)
{
analogWrite(x, bright); delay(2);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
for(int bright=0; bright < 255; bright++)
{
analogWrite(e, bright); delay(2);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
for(int bright=0; bright < 255; bright++)
{
analogWrite(l, bright); delay(2);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
for(int bright=255; bright > 0; bright--)
{
analogWrite(r, bright); delay(2);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
for(int bright=255; bright > 0; bright--)
{
analogWrite(t, bright); delay(2);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
for(int bright=255; bright > 0; bright--)
{
analogWrite(i, bright); delay(2);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
for(int bright=255; bright > 0; bright--)
{
analogWrite(x, bright); delay(2);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
for(int bright=255; bright > 0; bright--)
{
analogWrite(e, bright); delay(2);
}
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
for(int bright=255; bright > 0; bright--)
{
analogWrite(l, bright); delay(2);
}
}
void LightAll(){
ClearAll();
for(int bright=0; bright < 255; bright++)
{
analogWrite(l, bright);
analogWrite(e, bright);
analogWrite(x, bright);
analogWrite(i, bright);
analogWrite(t, bright);
analogWrite(r, bright); delay(2);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
}
}
void DimAll(){
ClearAll();
for(int bright=255; bright > 0; bright--)
{
analogWrite(l, bright);
analogWrite(e, bright);
analogWrite(x, bright);
analogWrite(i, bright);
analogWrite(t, bright);
analogWrite(r, bright); delay(2);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
}
}
void Flicker()
{
int timego;
do{
timego++;
int light = random(256);
analogWrite(l,light);
analogWrite(e,light);
analogWrite(x,light);
analogWrite(i,light);
analogWrite(t,light);
analogWrite(r,light);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
}while(timego < 10000);
}
void MultiFlicker()
{
int timego;
do{
timego++;
int light1 = random(100, 256);
int light2 = random(80);
int light3 = random(256);
analogWrite(l,light1);
analogWrite(e,light1);
analogWrite(x,light2);
analogWrite(i,light2);
analogWrite(t,light3);
analogWrite(r,light3);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
}while(timego < 10000);
}
void SimpleFlicker()
{
int timego;
do{
timego++;
int light = random(256);
analogWrite(l,255);
analogWrite(e,light);
analogWrite(x,255);
analogWrite(i,light);
analogWrite(t,255);
analogWrite(r,255);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
}while(timego < 10000);
}
void InsideOut()
{
ClearAll();
for(int light=0;light < 255; light++)
{
analogWrite(x,light);
analogWrite(i,light);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
delay(2);
}
for(int light=0;light < 255; light++)
{
analogWrite(e,light);
analogWrite(t,light);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
delay(2);
}
for(int light=0;light < 255; light++)
{
analogWrite(r,light);
analogWrite(l,light);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
delay(2);
}
for(int light=255 ;light > 0; light--)
{
analogWrite(x,light);
analogWrite(i,light);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
delay(2);
}
for(int light=255 ;light > 0; light--)
{
analogWrite(e,light);
analogWrite(t,light);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
delay(2);
}
for(int light=255 ;light > 0; light--)
{
analogWrite(r,light);
analogWrite(l,light);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
delay(2);
}
}
void OutsideIn()
{
ClearAll();
for(int light=0;light < 255; light++)
{
analogWrite(l,light);
analogWrite(r,light);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
delay(2);
}
for(int light=0;light < 255; light++)
{
analogWrite(e,light);
analogWrite(t,light);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
delay(2);
}
for(int light=0;light < 255; light++)
{
analogWrite(x,light);
analogWrite(i,light);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
delay(2);
}
for(int light=255 ;light > 0; light--)
{
analogWrite(l,light);
analogWrite(r,light);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
delay(2);
}
for(int light=255 ;light > 0; light--)
{
analogWrite(e,light);
analogWrite(t,light);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
delay(2);
}
for(int light=255 ;light > 0; light--)
{
analogWrite(x,light);
analogWrite (i,light);
buttonVal = digitalRead(buttnPin);
if(buttonVal == LOW) {buttonPress++;}
delay(2);
}
}
Will show more as I get it up here.
Thanks for sharing this im going to make 1 i try this if it works and will be back if its working great.
ReplyDelete
